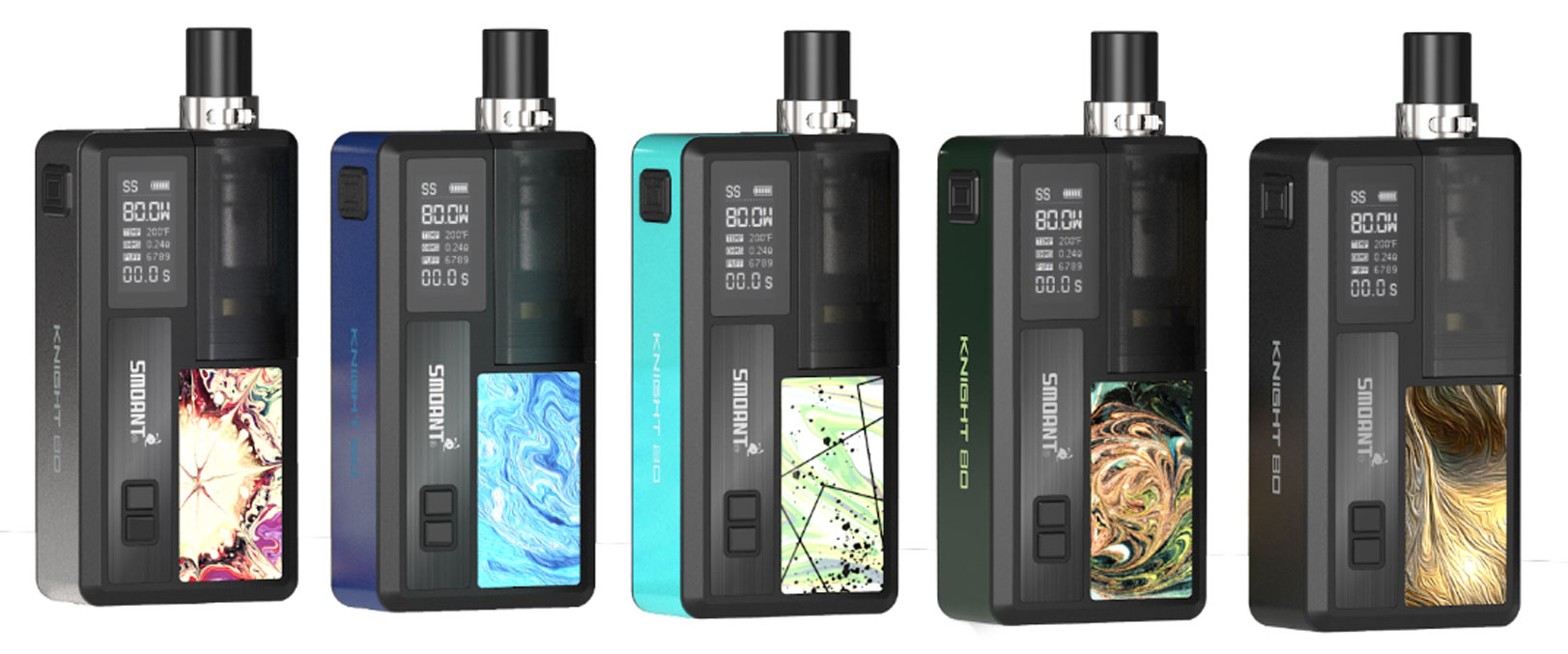

An electronic cigarette box, commonly known as a box mod, is a type of vaping device characterized by its typically rectangular or box-like form factor. These devices are generally larger and offer more power and features compared to simpler e-cigarette designs, providing users with greater control over their vaping experience.
Key Components and Features
Electronic cigarette boxes are comprised of several integral components that define their functionality and versatility:
- Battery System: Most box mods utilize one or more external rechargeable batteries (commonly 18650, 20700, or 21700 Li-ion cells). Some models feature built-in, non-removable batteries. Battery capacity directly impacts usage duration.
- Chipset: This is the central processing unit of the device. It regulates power output, manages safety features, and provides user interface functionalities. Advanced chipsets offer various modes such as variable wattage (VW), variable voltage (VV), temperature control (TC), and bypass mode.
- 510 Connector: A standardized threaded connection, typically spring-loaded, allowing for the attachment of a wide variety of atomizers (tanks, RDAs, RTAs, RDTAs).
- Display Screen: Often an OLED or TFT screen, displaying crucial information like current wattage/voltage, coil resistance, battery level, puff counter, and selected mode.
- Control Buttons: These usually include a primary fire button to activate heating of the coil, and adjustment buttons (e.g., “+” and “-“) for navigating menus and changing settings.
- Charging Port: Typically a Micro-USB or USB-C port used for firmware updates and, in some devices, for charging the internal or external batteries. However, external charging for removable batteries is often recommended for battery longevity and safety.
Primary Functions and Advantages
Box mods offer several distinct advantages that appeal to a broad range of vapers:
- Adjustable Power: The ability to precisely control wattage or voltage allows users to tailor vapor production and flavor intensity to their preference.
- Temperature Control (TC): This feature allows users to set a maximum temperature for the coil, preventing dry hits (burning an unsaturated wick) and providing a more consistent vape. TC mode requires specific coil materials like Nickel (Ni), Titanium (Ti), or Stainless Steel (SS).
- Enhanced Battery Life: The larger size of box mods often accommodates higher capacity batteries or multiple battery configurations, leading to significantly longer usage times between charges compared to smaller devices.
- Versatility: Compatibility with a vast array of atomizers and coil builds enables extensive customization of the vaping experience, from mouth-to-lung (MTL) to direct-to-lung (DTL) styles.
- Advanced Safety Features: Modern chipsets incorporate multiple safety protections, including short-circuit protection, overheat protection, low voltage cut-off, reverse polarity protection, and overcharge/over-discharge protection.
Important Considerations for Use
Proper understanding and handling are crucial for the safe and effective use of electronic cigarette boxes:
- Battery Safety: This is paramount, especially with external batteries. Users must use authentic, high-drain batteries suitable for their device, ensure battery wraps are undamaged, and understand Ohm’s Law and safe amperage limits. Using a dedicated external charger is generally advised.
- Coil Resistance and Material Compatibility: Ensure the atomizer’s coil resistance is within the supported range of the mod. For TC mode, use coils made from the correct material (Ni, Ti, SS) and configure the mod accordingly.
- Firmware Updates: Some manufacturers provide firmware updates that can improve performance, fix bugs, or add new features. Check the manufacturer’s resources for your specific model.
- Device Maintenance: Regular cleaning of the 510 connector, battery contacts, and general device exterior helps maintain performance and longevity.
- Understanding Modes: Familiarize yourself with the different operating modes (VW, TC, Bypass) and their appropriate use cases to optimize your vaping experience and device safety.
